High-Strength Galvalume Profile Sheets
Anti-Corrosive AZ150 Alloy • Weatherproof Seal
Engineered Weather Protection & Architectural Aesthetics

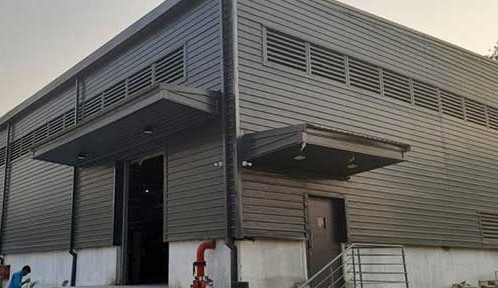

Roof and Wall Cladding forms the critical protective envelope of any industrial steel building. It shields the internal operations, machinery, and inventory from heavy monsoons, intense ultraviolet solar radiation, and extreme temperature fluctuations, while defining the contemporary visual identity of the facility.
Gapat Engineering fabricates and supplies premium pre-painted Galvalume (PPGL) and Bare Galvalume profile sheets engineered with high crests and anti-siphon capillary grooves. Combined with matching flashings, gutters, downspouts, and self-drilling neoprene fasteners, our cladding systems guarantee complete waterproofing and aesthetic excellence.

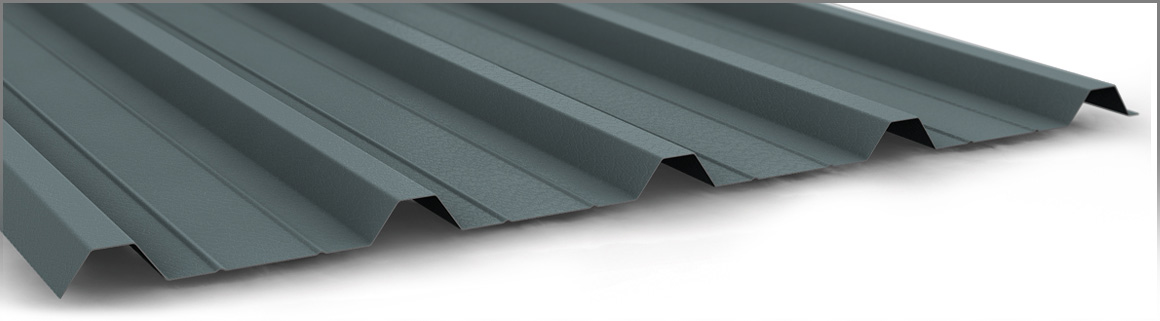

Roof Cladding Profiles
- Deep trapezoidal crests (28–32mm) for rapid drainage
- Engineered anti-siphon capillary groove prevents water ingress
- High load-bearing capacity under heavy wind & rainfall
- Suitable for low-slope industrial roofs down to 1:10
Wall Cladding & Facades
- Crisp architectural profile ribs for modern aesthetic facades
- Horizontal or vertical installation orientations
- Integrated corner trims, louvers & framed openings
- Impact-resistant high-tensile steel core (550 MPa)
Galvalume Metallurgy
- 55% Aluminum, 43.4% Zinc, 1.6% Silicon alloy coating
- Up to 4 times longer lifespan than traditional GI sheets
- Superior barrier protection and galvanic edge healing
- Class A1 non-combustible fire performance
Thermal Efficiency
- High Solar Reflectance Index (SRI) lowers indoor temperatures
- Reduces factory HVAC power consumption by up to 15%
- Seamlessly integrates with mineral wool & bubble insulation
- Compatible with daylight skylight polycarbonate sheets
Cladding Technical Specifications
IS 14246 • AS 1397 • ASTM A792| Base Metal | High-Tensile Cold-Rolled Steel (Yield Strength: 550 MPa) |
|---|---|
| Alloy Coating | Galvalume AZ150 (150 GSM Aluminum-Zinc Alloy Coating) |
| Thickness Range | 0.45 mm, 0.50 mm, 0.60 mm, up to 0.80 mm BMT |
| Paint System | Regular Modified Polyester (RMP) / Silicon Modified (SMP) / PVDF |
| Top Coat Thickness | 18–20 microns top coat over 5 microns corrosion-inhibiting primer |
| Effective Cover Width | 1000 mm to 1060 mm with 28–32 mm crest depth |
| Available Colors | Bare Galvalume, Off-White, Dark Blue, Sky Blue, Terracotta, Mist Green |
Applications & Usages
Warehouses & Logistics Hubs
Manufacturing Plants & Sheds
Cold Storage & Food Processing
Metro Stations & Transit Hubs
Aviation Hangars & Shipyards
Commercial Facades & Canopies
